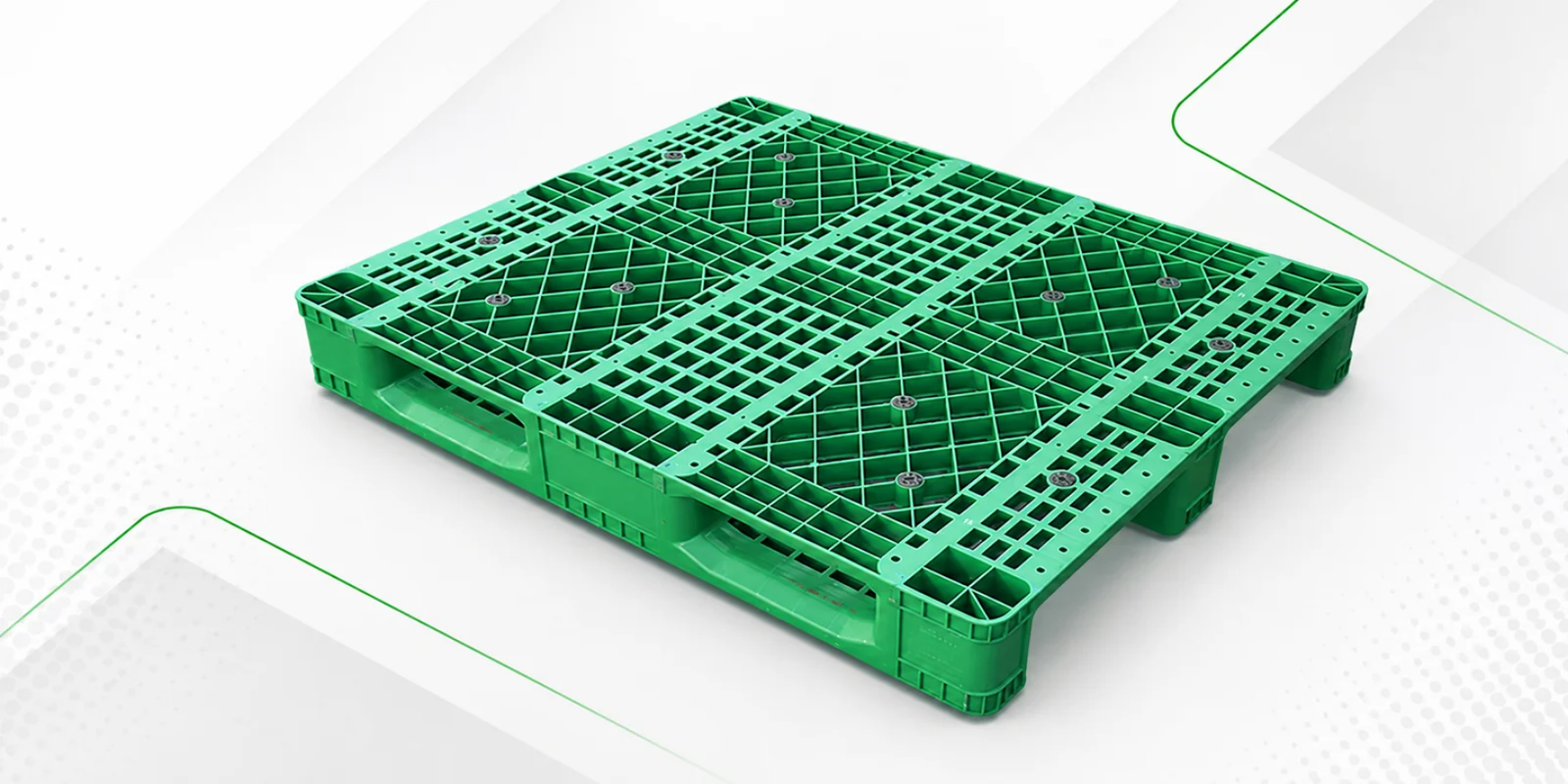

The 1500×1500 mm three runner plastic pallet is a large-format material handling solution designed for oversized loads, warehouse circulation and reinforced rack storage.
Its ventilated grid deck helps reduce unnecessary pallet weight, while the three-runner base provides continuous bottom support. For heavier handling and rack applications, the pallet can be reinforced with up to 15 steel tubes.
The standard pallet weighs 26 kg. Without steel reinforcement, it supports a dynamic load of 1,000 kg and a static load of 4,000 kg. When fitted with the specified steel reinforcement, its rated capacity increases to 1,500 kg dynamic, 6,000 kg static and 1,000 kg in compatible racking conditions.
Product Specifications
| Specification | Value |
| External dimensions | 1500 × 1500 mm |
| Pallet weight | 26 kg |
| Top deck | Ventilated grid deck |
| Bottom structure | Three-runner base |
| Optional reinforcement | Up to 15 steel tubes |
| Dynamic load without steel | 1,000 kg |
| Static load without steel | 4,000 kg |
| Dynamic load with reinforcement | 1,500 kg |
| Static load with reinforcement | 6,000 kg |
| Racking load with reinforcement | 1,000 kg |
| Application type | Large-format handling, stacking and compatible rack storage |
The 26 kg figure refers to the base pallet specification. The final weight of a reinforced pallet depends on the quantity, dimensions and placement of the steel tubes.
Reinforced and Unreinforced Load Comparison
| Configuration | Dynamic load | Static load | Racking load |
| Without steel tubes | 1,000 kg | 4,000 kg | Not specified |
| With steel reinforcement | 1,500 kg | 6,000 kg | 1,000 kg |
These ratings describe different support conditions and should not be used interchangeably.
Dynamic load is the maximum evenly distributed load under approved handling conditions while the pallet is being moved.
Static load is the maximum evenly distributed load when the pallet remains fully supported on a stable, level floor.
Racking load applies when the reinforced pallet is supported by compatible rack beams. Actual rack performance depends on beam span, load distribution, storage duration, temperature and the position of the pallet on the rack.
Why Use a Three-Runner Base?
The three-runner structure provides continuous support beneath the pallet instead of relying only on separate legs.
This configuration is particularly useful for large-format loads because it can:
- Improve bottom support across the pallet
- Distribute weight more evenly
- Increase stability during floor stacking
- Support compatible conveyor and warehouse handling systems
- Provide a suitable structural base for steel reinforcement
- Reduce deflection when the reinforced pallet is used on approved rack beams
The correct forklift, pallet truck and conveyor entry directions should be confirmed against the final pallet drawing and the customer’s handling equipment.
Ventilated Grid Deck
The open grid deck reduces excess plastic while providing ventilation and drainage around packaged goods.
This deck structure can be useful in warehouses where the pallet may be exposed to dust, moisture or routine cleaning. It also makes the pallet suitable for many packaged industrial loads where a completely closed hygienic surface is not required.
The grid opening, contact area and product packaging should be reviewed before loading small cartons, flexible bags or products with concentrated support points.
Optional 15-Steel-Tube Reinforcement
Up to 15 steel tubes can be incorporated into the pallet according to the required load and support conditions.
Steel reinforcement helps improve bending resistance and control deformation across the large 1500×1500 mm footprint. It is especially relevant when the pallet will carry dense products, remain loaded for extended periods or sit across rack beams.
The reinforced configuration provides:
- Dynamic load capacity up to 1,500 kg
- Static load capacity up to 6,000 kg
- Racking load capacity up to 1,000 kg
- Improved rigidity across the large pallet footprint
- Better control of long-span deck deflection
- Additional support for demanding warehouse circulation
The number and placement of steel tubes should be confirmed from the real load footprint and rack support arrangement. Adding steel does not automatically make every pallet suitable for every rack system.
Typical Applications
Oversized Industrial Loads
The 1500×1500 mm footprint provides a larger loading area for packaged machinery components, industrial parts and bulky unit loads.
Warehouse Floor Stacking
Its three-runner bottom structure and 4,000–6,000 kg static rating make it suitable for properly distributed loads stored on stable warehouse floors.
Heavy-Duty Internal Circulation
The reinforced 1,500 kg dynamic rating supports demanding material movement when the load, handling equipment and operating procedure remain within the approved conditions.
Compatible Beam Racking
With the specified steel reinforcement, the pallet has a reference racking capacity of 1,000 kg. Rack beam spacing, load distribution, temperature and storage duration must be confirmed before use.
Closed-Loop Logistics
The reusable structure can support circulation between factories, warehouses and distribution facilities where pallet dimensions and handling procedures are controlled.
How to Select the Correct Configuration
Before ordering, confirm the following information:
- Product dimensions and total loaded footprint
- Maximum gross load per pallet
- Whether the load is evenly distributed or concentrated
- Floor stacking, forklift transport or rack storage requirements
- Rack beam span and support direction
- Expected loaded storage duration
- Warehouse and cold-storage temperature
- Forklift, pallet truck and conveyor specifications
- Required number and arrangement of steel tubes
- Order quantity, color and identification requirements
For rack use, always provide the actual beam spacing. A pallet’s static floor rating cannot be used as its racking rating.
Frequently Asked Questions
What is the size of this three runner plastic pallet?
The pallet measures 1500 × 1500 mm. It is intended for large-format loads that require more deck area than standard 1200 × 1000 mm or 1200 × 800 mm pallets.
How much does the pallet weigh?
The base pallet weighs 26 kg. The finished weight will increase when steel tubes are added, depending on their quantity and specification.
How much can it carry without steel reinforcement?
Without steel tubes, the reference load ratings are 1,000 kg dynamic and 4,000 kg static. No unreinforced racking load has been specified.
What are the reinforced load capacities?
With the specified steel reinforcement, the pallet supports up to 1,500 kg dynamic load, 6,000 kg static load and 1,000 kg racking load under approved conditions.
Can it be fitted with fewer than 15 steel tubes?
The pallet supports an optional reinforcement configuration of up to 15 steel tubes. The final quantity and placement should be determined from the load, rack span and required rigidity.
Can this pallet be used directly on warehouse racks?
Only the reinforced configuration should be considered for rack use, based on the supplied 1,000 kg rating. The rack beam span, load distribution, temperature and storage duration must still be confirmed before purchase.
Request a Technical Recommendation
To receive an accurate pallet recommendation, provide your product dimensions, maximum load, rack beam spacing, handling equipment, storage temperature, required steel-tube configuration and order quantity.
The load figures above are reference ratings for the specified conditions. Final suitability should be confirmed against the real application rather than selected from static capacity alone。
